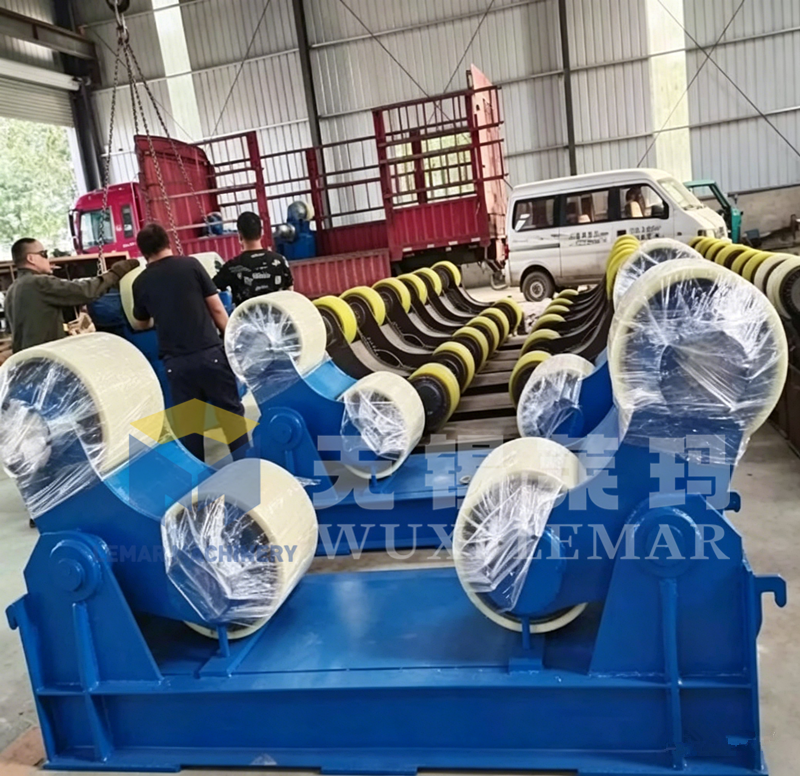

Anti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel Use

  • 1
  • 2
  • 3

Brand Name : LEMAR

Model Number : ZTG-40

Certification : CE

MOQ : 1

Price : 500-1000USD

Payment Terms : L/C,D/A,T/T,D/P,Western Union

Supply Ability : 500 units/month

Delivery Time : 10-20 work days

Packaging Details : 240.00cm * 750.00cm * 100.00cm

Place of Origin : WUXI

Customization : Available

Type : Welding Turning Rolls

Model : ZTG-40

Function : Tank Vessesl Automatic Welding Turning Rolls

Usage : Welding and Cutting Turning

Exported to : Canada,USA,Russia,Saudi Arabia,Iraq,Greece,France

Tanks Diameter : 500-3500mm

Roller Linear Speed : 6-60m/H

Motor Power : 1.5kw*2sets

Contact Now

Anti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel Use
Product Overview

Anti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel Use

Heavy-duty self-aligning welding rotator for large workpieces like wind towers and pressure vessels. It features a robust frame, wear-resistant rollers, and VFD stepless speed control, ensuring stable rotation, consistent welding quality, and high efficiency.

  • Main Frame Material: High-strength Q355 steel, with strong rigidity, anti-deformation and heavy load resistance
  • Roller Surface Treatment: PU/steel roller optional, wear-resistant, anti-slip, no damage to workpiece surface
  • Running Accuracy: Stable concentric rotation, low vibration, ensuring uniform welding seam quality
  • Self-aligning Function: Automatically adapts to different workpiece diameters, no manual adjustment needed
  • Speed Control: VFD stepless speed regulation, wide adjustable range for different welding processes
Anti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel UseAnti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel Use
Core Parameters

Model Loading Capacity (kg) Pipe/Tank Diameter (mm) Rubber Roller Dia. & Width (mm) Steel Roller Roller Speed (m/h) Motor Power (kw) Speed Adjust
ZTG-5 5000 Φ250-2300 Φ250*100 Φ240*20*2 6-60 0.75 Variable Frequency Drive (VFD)
ZTG-10 10000 Φ320-2800 Φ300*120 Φ290*25*2 6-60 1.1 Variable Frequency Drive (VFD)
ZTG-20 20000 Φ500-3500 Φ350*120 Φ340*30*2 6-60 1.5 Variable Frequency Drive (VFD)
ZTG-30 30000 Φ600-3800 Φ350*120 Φ340*30*2 6-60 2.2 Variable Frequency Drive (VFD)
ZTG-40 40000 Φ600-4200 Φ400*120 Φ390*40*2 6-60 3 Variable Frequency Drive (VFD)
ZTG-50 50000 Φ700-4500 Φ400*120 Φ390*40*2 6-60 4 Variable Frequency Drive (VFD)
ZTG-60 60000 Φ750-4800 Φ450*120 Φ440*50*2 6-60 4 Variable Frequency Drive (VFD)
ZTG-80 80000 Φ850-5000 Φ500*120 Φ490*60*2 6-60 5.5 Variable Frequency Drive (VFD)
ZTG-100 100000 Φ1000-5500 Φ500*120 Φ490*70*2 6-60 7.5 Variable Frequency Drive (VFD)
ZTG-150 150000 Φ1100-6000 Φ500*120 Φ600*Φ280 6-60 2*5.5 Variable Frequency Drive (VFD)
ZTG-250 250000 Φ1200-7000 / Φ700*380 6-60 2*5.5 Variable Frequency Drive (VFD)
ZTG-500 500000 Φ1800-8000 / Φ850*350 6-60 2*7.5 Variable Frequency Drive (VFD)
Technical Specifications

  • Rated Load: 40-ton heavy-duty bearing capacity, designed for large cylindrical workpieces
  • Roller Configuration: PU or steel rollers optional, anti-slip, wear-resistant, no damage to workpiece surface
  • Drive System: VFD stepless speed regulation, smooth and stable rotation, adjustable speed range
  • Self-aligning Design: Automatically adapts to different workpiece diameters, reducing manual adjustment
  • Frame Structure: Q355 high-strength steel, integral welding with stress relief treatment, anti-deformation
  • Transmission System: Precision gear reducer, low noise, high efficiency, long continuous working life
  • Control System: Centralized control cabinet, easy operation, with emergency stop function
  • Applicable Workpiece Diameter: Customizable range for different tank/pipeline sizes
Anti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel UseAnti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel Use
Quality Assurance

  • Raw Material Control: All steel plates, rollers, and core components adopt qualified industrial-grade materials, with incoming inspection records.
  • Production Process Inspection: Strictly follow ISO quality management system, conduct dimensional inspection, welding quality inspection, and assembly check at each stage.
  • Load Test: Every finished 40T rotator undergoes full load test, no-load running test, and speed stability test before delivery.
  • Painting & Surface Protection: Multi-layer anti-rust painting treatment to ensure corrosion resistance and long service life in harsh workshop environments.
  • Final Quality Audit: The whole machine will be comprehensively checked for appearance, function, safety, and electrical performance before leaving the factory, and only qualified products are allowed to be delivered.
  • Warranty Commitment: Provide 12-month warranty for the whole machine, with lifetime technical support and after-sales service.
Anti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel UseAnti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel Use
Company Certification

Anti-slip PU Wheel 40 Ton Welding Roller Frame Pressure Vessel Use
Frequently Asked Questions

Q: What is the maximum load capacity of this welding rotator?
A: This is a heavy-duty 40-ton welding rotator, specially designed for supporting and rotating large cylindrical workpieces like tanks, pressure vessels, and wind towers.
Q: Can it automatically adapt to different workpiece diameters?
A: Yes, the self-aligning design allows the rotator to automatically adjust to fit different diameters, saving manual adjustment time.
Q: Is the rotation speed adjustable?
A: Yes, it adopts VFD stepless speed regulation, with smooth and stable rotation to meet various welding process requirements.
Q: Will the rollers scratch or damage the workpiece surface?
A: No. It uses high-quality PU rollers (or optional steel rollers) with anti-slip and wear-resistant features, which will not damage the workpiece surface.
Q: How is the quality of this heavy-duty rotator guaranteed?
A: Every machine undergoes strict full-load testing, no-load operation test, and final quality inspection before delivery. We also provide 12-month warranty and lifetime technical support.
